Industrial Jib Crane Vacuum Lifting Equipment Vacuum lifter Machine Device

1. Customerized size and lifting solutions.The pads quantity and size and vacuum pads position etc. details according to your actual use.


2. For 500kg or below, we apply with pneumatic type, which apply with pure pneumatic system, no need to connect electricity, no charge, pneumatic lifting and pneumatic adsorption. For 500KG or above, our laser machine factory applys the electric type which is more safe.


3. This vacuum sheet lifter for sale equipped with vacuum leak alarm system, check valve and large capacity accumulator for safety in use, when in the accidental power failure, the workpiece can still remain in the sucker position for 5-30 minutes for your handling.


4. Special ball head design for suction pads, which can solve the materials in condition of uneven / oil / dirty.


Jib Crane / Vacuum Lifter / Vacuum Suction Lifting Equipment

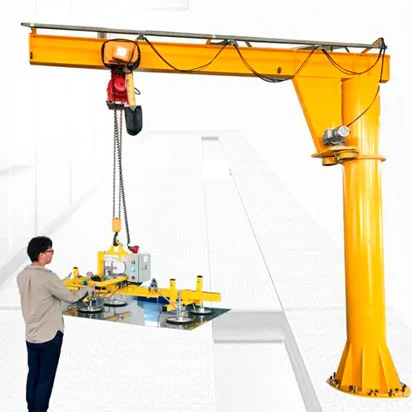

Jib Crane is made by five parts, column, cantilever crane, hoist, vacuum suction pads and remote control.


For 500kg or below, we apply with pneumatic type, which apply with pure pneumatic system, no need to connect electricity, no charge, pneumatic lifting and pneumatic adsorption. For 500KG or above, we apply the electric type which is more safe.


We adopting German Becker large-flow vacuum pump with extremely large flow and strong suction, which is safe and reliable.


The vacuum pads we adopt high strength wear resistant acrylonitrile-butadiene rubber which with longer quality guarante period for 18 monthes.


The suction cup is made of cast aluminum with one time high pressure die casting molding, which is light weight, high strength, detachable suction cup rubber, easy to replace environmental friendly.


Parameters and Technical Details of Our Vacuum Lifting Equipment

Product&ModelDIMENSION(L*W*H)(MM)Sucker Diameter(mm)Sucker NumberPower SystemSafety loadNet weightMAX LOAD SIZE(MM)
RT-XX500-6S2000x800φ2306pneumatic500kg100kg3000*1500
RT-XX800-8S2800x800φ2308380V800kg120kg4000*2000
RT-XXZ800-8S2800x800φ2308DC12V800kg120kg4000*2000
RT-XX1500-8S2800x800φ3008380V1500kg150kg4000*2000
RT-XXZ1500-8S2800x800φ3008DC12V1500kg150kg4000*2000
RT-XX1000-10S(1m+3m+1m)x1000φ23010380V1000kg210kg6000*2000
RT-XXZ1000-10S(1m+3m+1m)x1000φ23010DC12V1000kg210kg6000*2000
RT-XX2000-10S(1m+3m+1m)x1000φ30010380V2000kg250kg6000*2000
RT-XX2500-10S(1m+3m+1m)x1000φ30012380V2500kg280kg6000*2000
