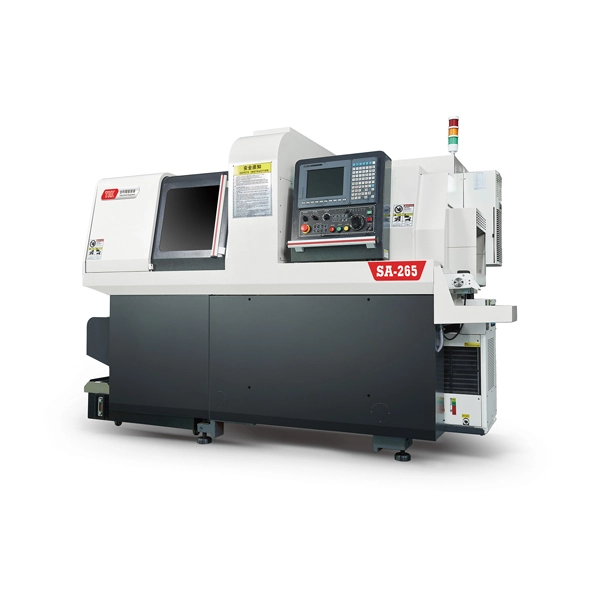

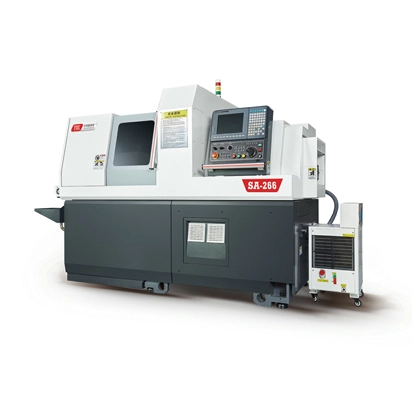

This series CNC Swiss-type lathe. It combines sliding tools and turret which is multiple tool holders, main spindles, sub-spindles and rotating tool axes are fully integrated on structure. One machine can quickly perform turning, milling, drilling,tapping and side milling operations.
1. The machine structure and the main spindle module applies with the Meehanite cast iron with high rigidity rib design. The entire structure is cast in one go and treated to eliminate the stress. So that ensure the precision for a long time use
2. High-precision,High efficiency, Less tailing processing
The processing tolerance is ±0.003mm,Add the special guide bushing structure which can minimize the tailing material.
3.Complex parts can be processed in one go
Supports with max 6 axis of difference molds which makes it possible for one-time completion of multiple processes such as turning, milling, drilling, and tapping etc.
3. Wide range of material processing
Good at processing a variety of materials, including stainless steel, aluminum alloy, copper, titanium alloy, suitable for application scenarios in different fields.
Item | SA265 | SA205 | |||
Maximum machining diameter | φ26mm | φ20mm | |||

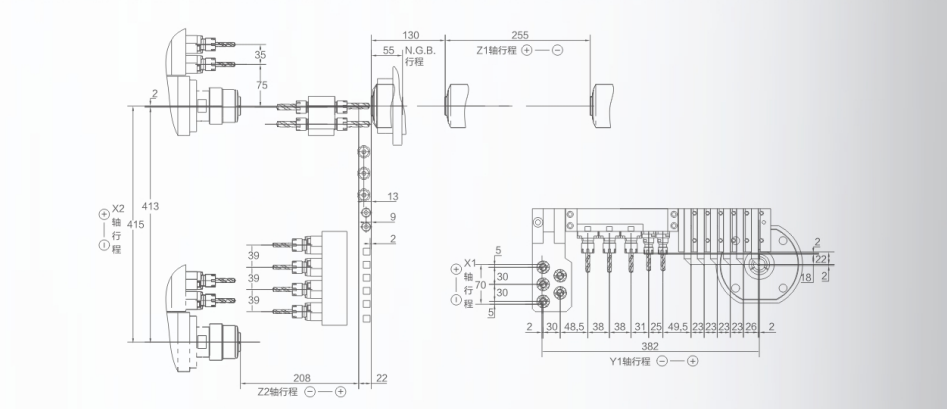

Max headstock stroke | Standard Guide bushing | 260mm | 260mm | ||
Non-guide bushing | 2.5D | 2.5D | |||
turning tool | Quantity of tools | 6pcs | 6pcs | ||
Tool specifications | □12mm | □12mm | |||
Face toolholder | Quantity of tools | front-end working | 5 pcs | ||
Rear-end working | 2 pcs(Max. 5 pcs) | ||||
Max.drilling | Fixed tools | φ10mm | |||
Max.tapping | Fixing tools | M8*P1.25 | |||
Cross tool unit | Quantity of tools | 5 pcs | |||
Tool specifications | 5 ER16 | ||||
Maximum drilling | φ8mm(ER16) | ||||
Maximum tapping | M6*P1.0（ER16) | ||||
Maximum milling | φ10mm | ||||
Maximum milling slotting | Width 1.5, depth 4mm | ||||
Spindle Speed | ER16 | 6,000min-1 | |||
ER11 | 8,000min-1 | ||||
Drive power | 1Kw | ||||
Fast moving speed | Z1 | 32m/min | |||
X1 | 32m/min | ||||
Y1 | 32m/min | ||||
Main spindle Max. speed | 10,000min-1 (6,000min-1 synchronous guide sleeve) | ||||
Main spindle indexing angle | C-axis control (0.001º) | ||||
Main spindle power | 2.2/3.7kw | ||||
Main spindle Through hole diameter | φ27mm | φ22mm | |||
Coolant capacity | 170L | ||||
Cooling motor power | 0.4kw | ||||
Overall dimensions (length*width*height) | 2300*1300*1780mm | ||||
Machine weight | 2600kg | ||||
■ Second spindle (SUB) configuration specifications | |||||
Maximum processing diameter | φ26mm | φ20mm | |||
Maximum discharge part length | 80mm | ||||
Maximum clamping protrusion length | 50mm | ||||
Back Side Processing | Quantity of tools | ER16 | 4-6 (fixed) | ||
Maximum drilling | Fixing tools | φ8mm | |||
Rotation tools | φ6mm | ||||
Maximum tapping | Fixing tools | M8＊P1.25 | |||
Rotation tools | M6＊P1.0 | ||||
Fast moving speed | Z2 | 32m/min | |||
X2 | 24m/min | ||||
Maximum speed of Sub spindle | 8,000min-1 | ||||
Sub spindle degree | C-axis control (0.001º) | ||||
Sub spindle power | 1.5/2.2kw | ||||
