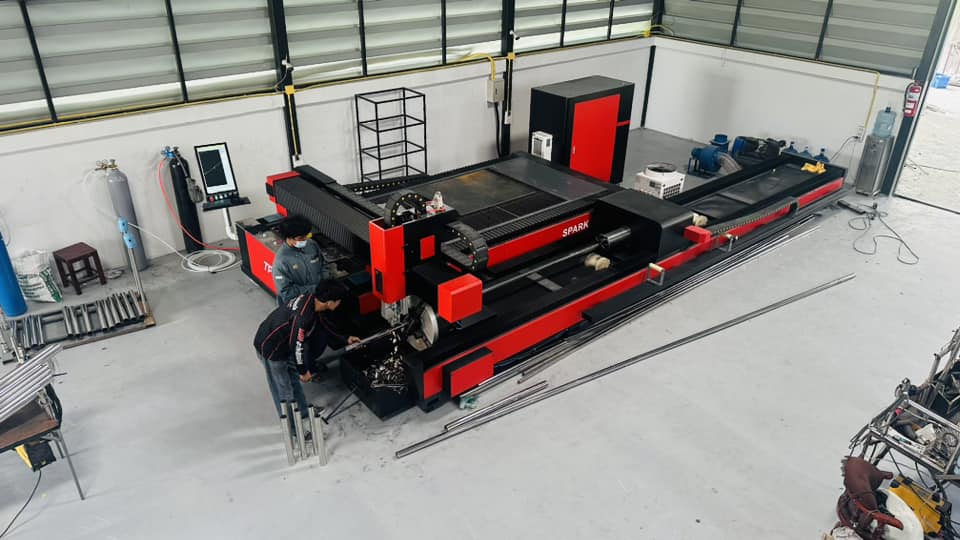

Spark P series is dual-use fiber laser cutting machine is designed for the tube & sheet cutting in one machine
Standard configuration
1) For the sheet cutting part: 3000*1500mm
2) Open type, single table
3) For the tube cutting part: 6M long long, Diameter: 20-245mm, 360mm or other big size is optional
4) Standard cutting shape: Round, square as standard, C, L, H are also available
5) Laser source power: 1kw-6kw
If you are operating with limited floor space and a constrained budget, yet still require high-precision sheet metal cutting & tube cutting application,
the Spark P Series Fiber Laser Cutting Machine is an ideal solution
For this type of dual-purpose fiber laser cutting machine, many customers initially express concerns about the gantry structure
as it is also designed to support tube cutting operations. A common worry is that when the laser cutting head moves toward
the tube-cutting side, the gantry may experience deformation, potentially affecting cutting precision
Based on Remcor Technology’s extensive design experience, long-term field operation, and customer feedback
we can confidently confirm that no such issues occur. The machine maintains excellent precision and stability,
with many units operating smoothly for more than five years without any structural or accuracy problems
The gantry is engineered with high rigidity and enhanced load-bearing capacity, ensuring stable support for
the laser cutting head during high-speed movement and cutting operations.
A specially optimized, lightweight base design reduces inertia, allowing for faster acceleration, higher cutting speed
and improved overall efficiency, without compromising stability.
For combined sheet and tube cutting applications, the pneumatic chuck system is one of the most critical components.
If the chuck suffers from issues such as insufficient clamping force, air leakage, or sealing failures, cutting accuracy and operational
safety can be compromised
To eliminate these risks, we equip our machines with high-quality Runyuan pneumatic chucks.
These chucks provide strong and reliable clamping force, even when processing heavy-duty pipes, and support higher rotational
speeds for improved productivity.
If this structure lacks sufficient rigidity
especially when handling long or heavy pipes—vibration may occur, negatively impacting cutting accuracy.
To prevent this, our tube attachment body is designed with exceptional strength and stability, ensuring smooth
vibration-free operation under all working conditions.
One-piece fully enclosed helical gear transmission
Excellent dust-proof performance and long service life
Convenient concentricity adjustment device
High cutting accuracy and machine stability
Automatic short tail material cutting mode for safer operation
Aluminum body with oxidation treatment for lower inertia and better dirt resistance
Strong and reliable clamping force for heavy-duty and long pipes
Supports higher rotation speed for increased productivity
Eliminates risks of air leakage and poor clamping
Standard auto focus function, no need focus adjustment while changing sheet; Automatic tracking and accurately adjusting the focus according to the material thickness to ensure the best cutting effect of the whole board. Shorter perforation time, better perforation quality, high-speed cutting, saving time.
It simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing, nesting to workpiece cutting all can be finished by a few clicks on big IPAD Screen. Realize the intelligent diagnosis, multi-threading operation, three-level perforation, laser energy control, adaptive edge-finding, automatic corner acceleration and deceleration, flight cutting, switching worktables, mechanical accuracy compensation etc.
Pneumatic clamp design on both sides. The dual-chucks help reduce tube vibration to a minimum, guaranteeing high accuracy in even complex tube configurations at high cutting speed. Suitable for cutting a range of tube diameters from Ø20 mm to Ø220 mm and various wall thicknesses.
Applies the intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.Equipped with two sets of variable-diameter support structures, which are automatically lifted by the cylinder to avoid the rear chuck in processing. When processing profiles with different diameters, manually turn the variable-diameter wheels to achieve fit and support for different-sized profiles. The variable-diameter wheels It can be supported every two degrees of rotation to reduce the diameter of the circumscribed circular tube by 2mm
