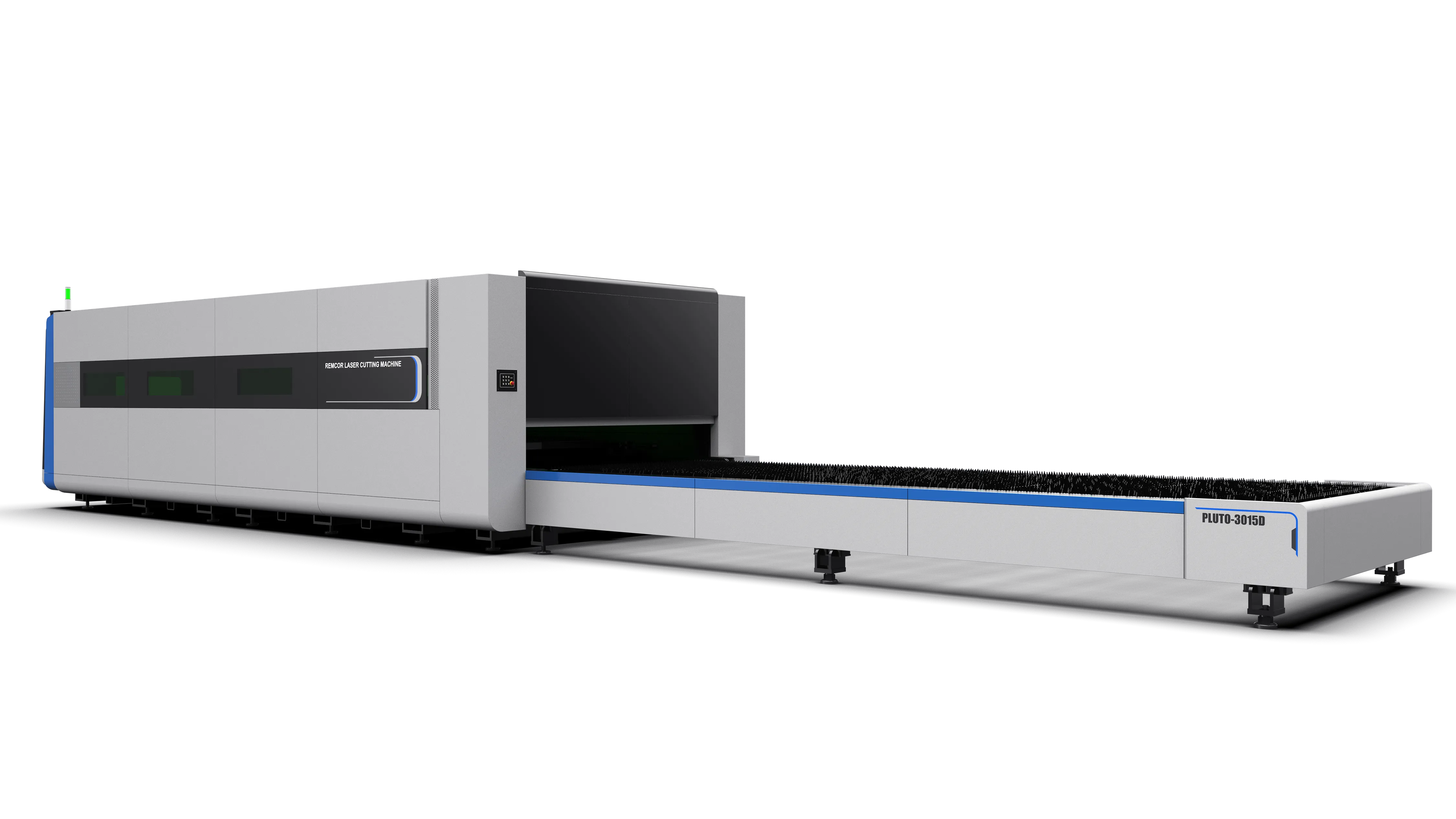

6000W–20000W | High-Power Enclosed Type Exchange table Fiber Laser Cutting Machine

The Pluto HD Enclosed Type Fiber Laser Cutting Machine is a high-power enclosed cover double table fiber laser cutting machine, designed specifically for customers who already own their first fiber laser cutting machine and are now looking for:

• Higher cutting speed for thin materials

• Stronger cutting capability for thick plates

• Larger table sizes for higher production efficiency

This model is ideal for industrial users upgrading to a high power fiber laser cutting machine with improved productivity and long-term performance.

Why Choose a Higher Power Fiber Laser Cutting Machine?

1) Higher Cutting Speed on the Same Material

With the same material and thickness, a higher power fiber laser cutting machine delivers significantly faster cutting speeds. In many cases, cutting efficiency is several times higher than that of lower-power machines, greatly improving production output.

2) Improved Air Cutting Capability

• More and more customers prefer air cutting to reduce gas costs. Higher laser power greatly improves air cutting capability, including:

• Increased cutting thickness

• Better cutting edge quality

• Higher air cutting speed

Low-power fiber laser cutting machines are limited in air cutting thickness and edge quality, while high-power enclosed fiber laser cutting machines perform much better.

3) Stronger Oxygen Cutting Capability for Carbon Steel

For carbon steel cutting with oxygen (O₂):

• A 3000W fiber laser cutting machine typically cuts up to 16mm

• A 6000W fiber laser cutting machine can cut up to 25mm with good edge quality

This makes high-power machines more suitable for heavy-duty metal fabrication.

Recommended Power Selection: 6000W or 12000W

If you already own a fiber laser cutting machine and plan to upgrade:

6000W and 12000W are the most practical and popular power choices

Power Selection Guide:

• 12000W fiber laser cutting machine

Best choice if budget allows

Can handle approximately 90% of common cutting jobs

Excellent balance of speed, thickness, and flexibility

• 6000W fiber laser cutting machine

Cost-effective upgrade solution

Strong performance for most applications

Can be upgraded to 12000W later by changing the chiller and laser cutting head, as the system structure remains compatible

4. Component Configuration: HD Series

Thanks to China’s mature manufacturing supply chain, all components used in our fiber laser cutting machines are stable, reliable, and proven in the global market.

The Pluto HD enclosed cover double table fiber laser cutting machine is positioned as a high-standard fiber laser cutting machine. Its design philosophy focuses not only on excellent cutting performance, but also on long-term durability, high-speed stability, and continuous industrial operation without quality compromise.

To achieve this standard, the Pluto HD series mainly adopts international brand components, which are widely available in local markets and ensure consistent performance and easy maintenance.

Core components and auxiliary parts: International brand configurations

Servo motors: FUJI or Yaskawa

Electrical components: Schneider

This high-end component configuration ensures that the enclosed cover double table fiber laser cutting machine maintains high precision, smooth motion, and reliable operation even under high-speed and high-power cutting conditions.

5. Fully Enclosed Design for Safety & Environmental Protection

The Pluto HD enclosed cover double table fiber laser cutting machine features a fully enclosed protective structure, providing:

• Enhanced operator safety

• Reduced laser radiation exposure

• Improved dust and smoke control

• Compliance with factory safety and environmental regulations

This design is especially suitable for modern factories and regulated industrial environments.

6. 100% Pre-Delivery Testing & Fast Installation

All Pluto HD fiber laser cutting machines undergo strict quality control before shipment, including:

• Complete machine debugging

• Sample cutting tests

• 24-hour idle running test

• Full testing videos sent to customers for confirmation before delivery




After arrival, customers only need to connect:

• Electrical supply

• Water supply

• Auxiliary systems

All cutting parameters are pre-set, allowing the fiber laser cutting machine to start production within one day.

7. CNC Control System

The Pluto HD enclosed cover double table fiber laser cutting machine mainly uses the BOCHU CNC control system, combined with a matched laser cutting head.

Highly stable and reliable

Easy to operate and learn

Widely proven in high-power fiber laser cutting applications

8. Body Structure & Automatic Lubrication System

Body Structure (HD Series)

• Pipe & plate welded structure

• Designed service life: 10 years

• Suitable for fiber laser cutting machines with power ≥6000W and ≤20000W

• Provides high loading capacity and stable high-speed movement




Automatic Lubrication System

• Standard automatic lubrication for key transmission components

• Ensures smooth operation and reduced mechanical wear

• Extends component service life and reduces maintenance workload

9. Advanced Cutting Support Systems

Anti-Burn Technology & Sectional Smoke Extraction

Anti-burn technology protects the cutting table during thick plate cutting

Sectional smoke suction improves dust extraction efficiency

Advanced Gas Control System (O₂ & N₂)

Oxygen (O₂) and Nitrogen (N₂) proportional valves

Three independent gas circulation systems

Prevents gas interference and ensures stable pressure during high-power cutting

Zoning Ventilation System

Cutting area divided into left and right zones

Equipped with 300 × 300 mm full-hollow ventilation ducts

Improves smoke extraction and workshop air quality

10. Customization & OEM Fiber Laser Cutting Machine Solutions

We support customization for enclosed cover double table fiber laser cutting machines, including:

• Machine color

• Appearance design

• Logo branding

• Customized solutions can be developed under a confidentiality agreement, ensuring exclusivity for specific customers.

11. Warranty, Lifetime Service & 24/7 Support

Each Remcor fiber laser cutting machine is supplied with:

• 24-month warranty service

• Lifetime technical support

• 24-hour online service team ready to assist customers worldwide

Comparation between Pluto ND & HD & UD

Heavy-duty Plate Welding Bed

Fully-plate welding bed and annealing stress removal undergo over 600⁰, can stand with high acceleration. The strength, rigidity and stability are guaranteed.

Section Dust Suction System

Anti-Burn Technology

Strong brick was applied to transfer the heat. Efficiently prevent the machine bed from being deformed by the heat and guarantee the service life.

Auto Changing Pallet Table System

Inter-switching workbench, exchange fast in 19 second, saving the loading time

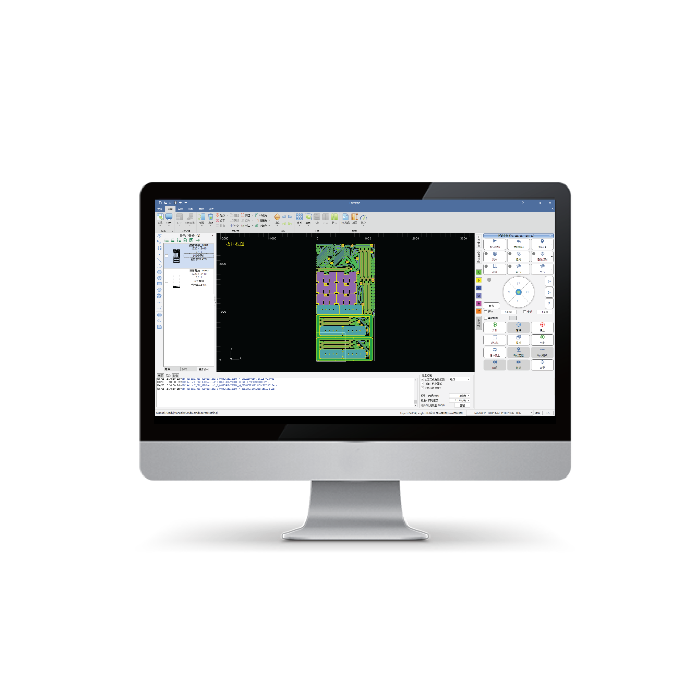

CNC Controlling system

Currently the combination Bochu System and its BLT serries laser cutting head is the best option for the fiber laser cutting machine in the world by its easy understanding, stronger functions and system stability etc.

BLT Intelligent Cutting Head

Anti-collision Protection-More Convenient Maintenance

The anti-collision design of the cutting head effectively reduces the depot-repar probability, without technical support, customers can replace the broken parts by themselves, and the maintenance cost is lower

More stable and efficient cutting

Real-time monitoring through the internal sensor of the cutting head. During the cutting process, when it is monitored that the slag is not cut completely, it will automatically retreated for re-cutting, achieve unattended operation and stable processing.

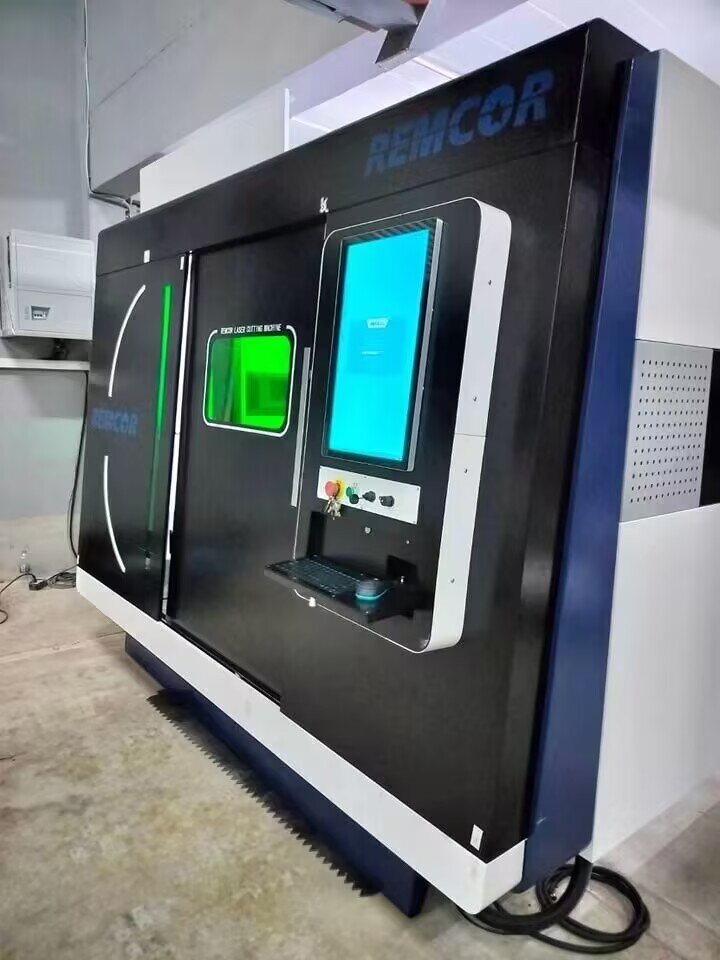

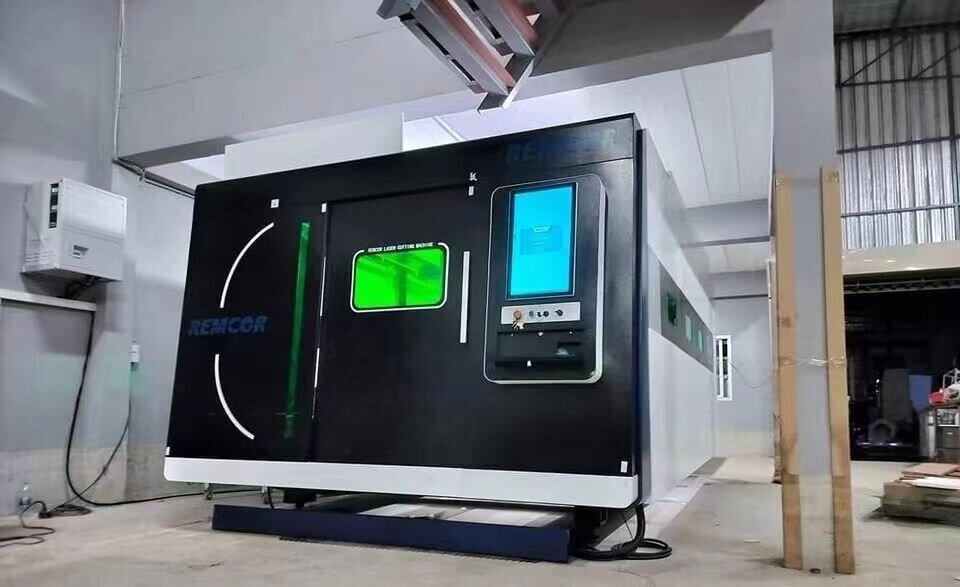

Final Machine reference
