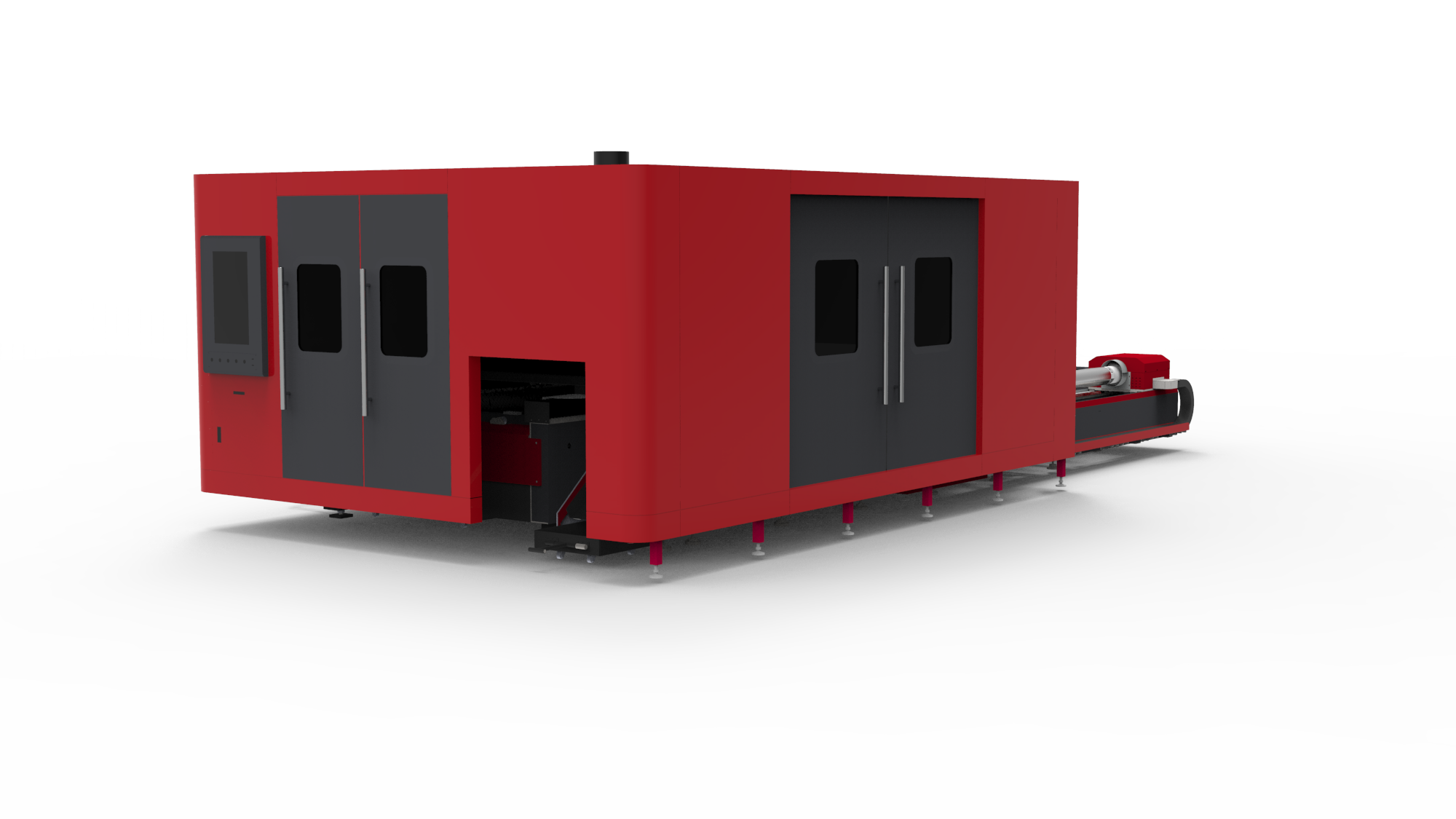

Pluto PD series is dual-use fiber laser cutting machine is designed for the tube & sheet cutting in one machine
Standard configuration
1) For the sheet cutting part: 3000*1500mm
2) Double table, Full Cover for the sheet and pipes
3) For the tube cutting part: 6M long long, Diameter: 20-245mm, 360mm or other big size is optional
4) Standard cutting shape: Round, square as standard, C, L, H are also available
5) Laser source power: 6000W-20000W
6) For a clean environment which can connect the dust collector
The Pluto PD dual-use fiber laser cutting machine is designed to meet the growing demands of modern metal fabrication workshops that require high efficiency, clean production, safety compliance, and flexible processing. By combining sheet metal cutting and tube cutting in one fully enclosed system, Pluto PD can easily cover over 80% of daily fabrication needs, reducing equipment investment and factory footprint.
With its fully enclosed cover, double exchange tables, and advanced dust and smoke extraction system, Pluto PD creates a clean, safe, and environmentally friendly working environment, making it ideal for high-standard factories in Europe and North America. Once connected to a dust collector, all smoke and fine particles generated during cutting are effectively filtered and discharged, ensuring compliance with American and European safety standards.
Built on a reinforced tube-welded bed, treated with high-temperature stress relief and annealing, and enhanced with graphite anti-burning protection, the Pluto PD guarantees long-term stability with no deformation for at least 10 years. Combined with high-precision pneumatic chucks, a rigid tube attachment body, and lightweight high-speed motion components, the machine delivers excellent cutting accuracy, speed, and reliability for both sheet and pipe processing.
For customers with special production requirements, all major components are customizable, and ODM services are fully supported, ensuring the machine fits perfectly into different production lines and applications.
Supports both metal plates and pipes in one machine
Covers up to 80% of fabrication applications
Reduces investment cost and increases production flexibility
Fully enclosed cover with side opening doors
Easy inspection during operation
Complies with American and European safety standards
Ideal for high-standard and clean factories
Continuous cutting with reduced loading/unloading time
Significantly improves overall productivity
High-temperature welding and annealing treatment
No deformation for at least 10 years
Ensures long-term precision and machine stability
Protects the machine bed during high-power cutting
Efficient smoke and dust extraction
Almost no visible smoke during operation
High rigidity and strong load-bearing capacity
Stable support for the laser cutting head
Ensures accuracy during high-speed cutting
Optimized lightweight structure
Faster acceleration and higher cutting speed
Improved efficiency without sacrificing stability
Strong and reliable clamping force
Suitable for heavy-duty and long pipes
Supports higher rotation speed for increased productivity
Eliminates risks of air leakage and poor clamping
High structural strength for long and heavy pipes
Effectively reduces vibration
Ensures smooth, stable, and accurate cutting
One-piece fully enclosed helical gear transmission
Excellent dust-proof performance and long service life
Convenient concentricity adjustment device
Automatic short tail material cutting mode for safer operation
Aluminum body with oxidation treatment for lower inertia and better dirt resistance
Strong and reliable clamping force for heavy-duty and long pipes
Supports higher rotation speed for increased productivity
Eliminates risks of air leakage and poor clamping
Main components can be customized
Flexible configuration to meet different production needs
Standard auto focus function, no need focus adjustment while changing sheet; Automatic tracking and accurately adjusting the focus according to the material thickness to ensure the best cutting effect of the whole board. Shorter perforation time, better perforation quality, high-speed cutting, saving time.
It simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing, nesting to workpiece cutting all can be finished by a few clicks on big IPAD Screen. Realize the intelligent diagnosis, multi-threading operation, three-level perforation, laser energy control, adaptive edge-finding, automatic corner acceleration and deceleration, flight cutting, switching worktables, mechanical accuracy compensation etc.
Pneumatic clamp design on both sides. The dual-chucks help reduce tube vibration to a minimum, guaranteeing high accuracy in even complex tube configurations at high cutting speed. Suitable for cutting a range of tube diameters from Ø20 mm to Ø220 mm and various wall thicknesses.
Applies the intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.Equipped with two sets of variable-diameter support structures, which are automatically lifted by the cylinder to avoid the rear chuck in processing. When processing profiles with different diameters, manually turn the variable-diameter wheels to achieve fit and support for different-sized profiles. The variable-diameter wheels It can be supported every two degrees of rotation to reduce the diameter of the circumscribed circular tube by 2mm
